Shell Pipe
Heat Exchanger

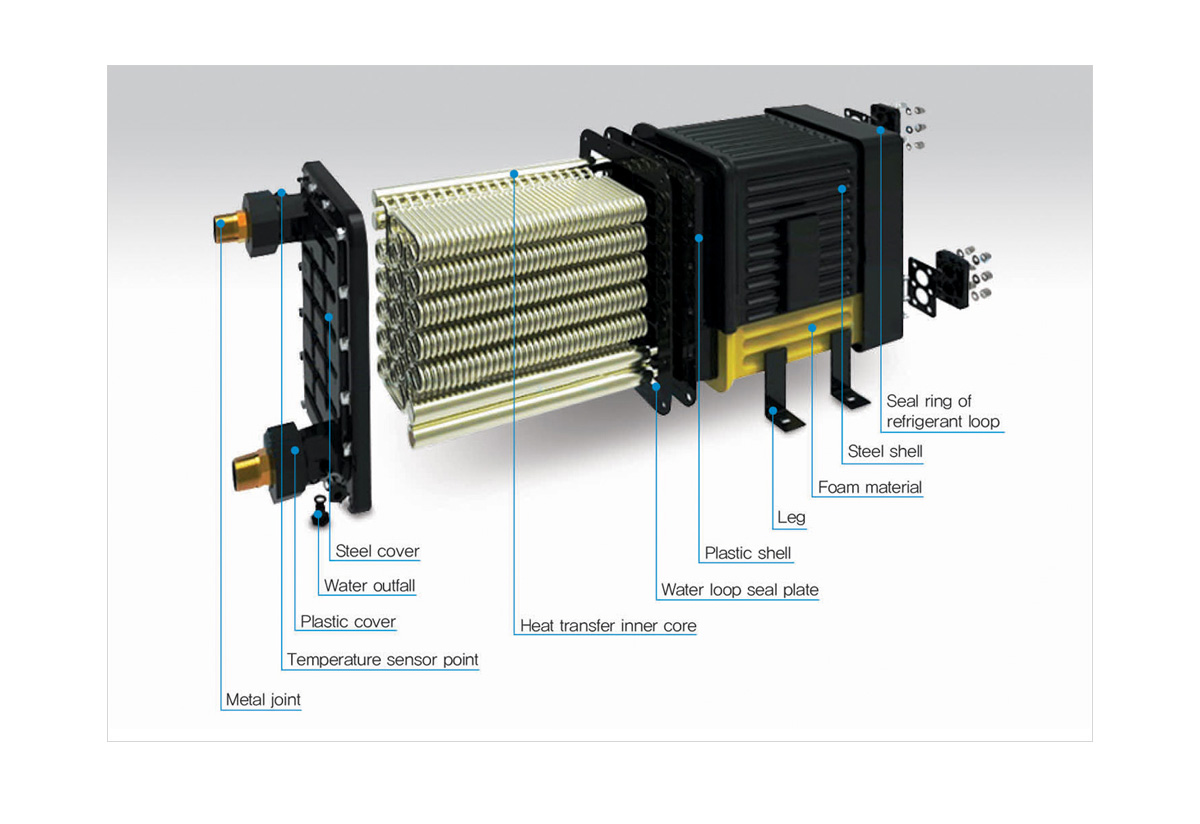

FEATURE
ㅁ Using inner grooved tube with internally spiral form, it has great thermal efficiency and is designed with compact structure.
ㅁ Designed with high cold-resistance, there is no damages of refrigerating cycle due to freezing and bursting
ㅁ Better durability than ordinary metal products, made of anti-corrosive materials
ㅁ Designed with separable external casing, available for internal cleaning and easy for maintenance and repair for longtime
ㅁ 밀봉된 케이싱은 3중 구조로 되어있어 추가로 보온을 할 필요가 없습니다.
ㅁ There are various products made of diverse materials such as copper, white copper, nickel-plated copper, and titanium for special conditions such as sea water and swim pool water as well as ordinary water.
ㅁ Available for being used with refrigerants R-22, R407C, R134A, R410A, R404A, and R417A
ㅁ Designed with high cold-resistance, there is no damages of refrigerating cycle due to freezing and bursting
ㅁ Better durability than ordinary metal products, made of anti-corrosive materials
ㅁ Designed with separable external casing, available for internal cleaning and easy for maintenance and repair for longtime
ㅁ 밀봉된 케이싱은 3중 구조로 되어있어 추가로 보온을 할 필요가 없습니다.
ㅁ There are various products made of diverse materials such as copper, white copper, nickel-plated copper, and titanium for special conditions such as sea water and swim pool water as well as ordinary water.
ㅁ Available for being used with refrigerants R-22, R407C, R134A, R410A, R404A, and R417A
INNER TUBE MATERIAL
IRON SHELL-SHELL AND PIPE HEAT EXCHANGER
INNER TUBE MATERIAL
MODEL |
Evaporator |
Condenser |
|||||||
Cooling capacity |
Water flow m³/h |
Water pressure drop kPa |
Heating capacity |
Water flow m³/h |
Water pressure drop kPa |
||||
Kw |
btu/h |
Kw |
btu/h |
||||||
R410A |
SS-0120GSTi-F |
9.7 |
33000 |
1.67 |
12.7 |
10.0 |
34000 |
1.72 |
13.3 |
SS-0150GSTi-F |
11.3 |
39000 |
1.95 |
18.5 |
11.7 |
40000 |
2.01 |
19.4 |
|
SS-0180GSTi-F |
13.8 |
47000 |
2.37 |
15.2 |
14.2 |
48000 |
2.44 |
15.9 |
|
SS-0220GSTi-F |
17.0 |
58000 |
2.93 |
21.0 |
17.5 |
60000 |
3.01 |
22.0 |
|
SS-0250GSTi-F |
20.0 |
69000 |
3.44 |
26.2 |
21.0 |
72000 |
3.16 |
27.4 |
|
SS-0300GSTi-F2 |
24.2 |
82000 |
4.16 |
12.4 |
24.9 |
85000 |
4.28 |
13.0 |
|
SS-0360GSTi-F2 |
27.6 |
94000 |
4.75 |
16.1 |
28.4 |
97000 |
4.89 |
16.8 |
|
SS-0360GSTi-F |
25.9 |
88000 |
4.46 |
15.7 |
26.7 |
91000 |
4.59 |
16.4 |
|
SS-0480GSTi-F2 |
36.2 |
124000 |
6.23 |
19.8 |
37.3 |
127000 |
6.42 |
20.8 |
|
SS-0650GSTi-F2 |
48.6 |
166000 |
8.36 |
15.8 |
50.1 |
171000 |
8.61 |
16.6 |
|
NOTE
Test condition |
Outlet of water |
Inlet of water |
Evaporating temperature |
Condensing temperature |
SUB cooling temperature |
Super heat temperature |
|
Temperature |
Evapoorator |
7℃/44.6℉ |
12℃/53.6℉ |
2℃/35.6℉ |
40℃/104℉ |
4K |
2K |
Condenser |
35℃/95℉ |
30℃/86℉ |
2℃/35.6℉ |
50℃/122℉ |
4K |
30K ~ |
|
CUPRONICKEL SHELL PIPE HEAT EXCHANGER
MODEL |
Evaporator |
Condenser |
|||||||
Cooling capacity |
Water flow m³/h |
Water pressure drop kPa |
Heating capacity |
Water flow m³/h |
Water pressure drop kPa |
||||
Kw |
btu/h |
Kw |
btu/h |
||||||
R22 |
SS-0120GSN-F |
10.9 |
37000 |
1.9 |
11.9 |
13.3 |
46000 |
2.3 |
16.9 |
SS-0150GSN-F |
14.2 |
48000 |
2.4 |
17.4 |
16.7 |
57000 |
2.9 |
23.9 |
|
SS-0180GSN-F |
16.1 |
55000 |
2.8 |
14.3 |
19.6 |
67000 |
3.4 |
19.9 |
|
SS-0220GSN-F |
19.6 |
67000 |
3.4 |
19.8 |
25.9 |
88000 |
4.5 |
30.6 |
|
SS-0250GSN-F |
22.3 |
76000 |
3.8 |
25.2 |
27.2 |
93000 |
4.7 |
32.3 |
|
SS-0300GSN-F2 |
25.2 |
86000 |
4.3 |
13.2 |
32.8 |
112000 |
5.6 |
21.8 |
|
SS-0360GSN-F2 |
29.3 |
100000 |
5.0 |
17.1 |
37.5 |
128000 |
6.4 |
28.2 |
|
SS-0360GSN-F |
28.4 |
97000 |
4.9 |
14.8 |
36.4 |
124000 |
6.3 |
24.3 |
|
SS-0480GSN-F2 |
40.3 |
138000 |
6.9 |
14.7 |
51.6 |
176000 |
8.9 |
22.5 |
|
SS-0650GSN-F2 |
54.0 |
184000 |
9.3 |
16.8 |
72.3 |
247000 |
12.4 |
26.8 |
|
R410A |
SS-0120GSN-F |
12.0 |
41000 |
2.1 |
13.9 |
14.7 |
50000 |
2.5 |
19.2 |
SS-0150GSN-F |
15.6 |
53000 |
2.7 |
20.3 |
18.3 |
63000 |
3.2 |
26.2 |
|
SS-0180GSN-F |
17.8 |
61000 |
3.1 |
16.7 |
21.6 |
74000 |
3.7 |
22.8 |
|
SS-0220GSN-F |
21.6 |
74000 |
3.7 |
23.1 |
28.5 |
97000 |
4.9 |
35.9 |
|
SS-0250GSN-F |
24.6 |
84000 |
4.2 |
28.7 |
29.9 |
102000 |
5.1 |
39.3 |
|
SS-0300GSN-F2 |
27.7 |
95000 |
4.8 |
15.4 |
36.1 |
123000 |
6.2 |
23.5 |
|
SS-0360GSN-F2 |
32.2 |
110000 |
5.5 |
19.9 |
41.2 |
141000 |
7.1 |
29.6 |
|
SS-0360GSN-F |
31.3 |
107000 |
5.4 |
17.2 |
40.0 |
137000 |
6.9 |
25.5 |
|
SS-0480GSN-F2 |
44.4 |
151000 |
7.6 |
17.1 |
56.8 |
194000 |
9.8 |
25.4 |
|
SS-0650GSN-F2 |
59.4 |
203000 |
10.2 |
19.6 |
79.5 |
271000 |
13.7 |
31.2 |
|
NOTE
Test condition |
Outlet of water |
Inlet of water |
Evaporating temperature |
Condensing temperature |
SUB cooling temperature |
Super heat temperature |
|
Temperature |
Cooling evaporator |
7℃/44.6℉ |
12℃/53.6℉ |
2℃/35.6℉ |
40℃/104℉ |
4K |
2K |
Cooling condenser |
35℃/95℉ |
30℃/86℉ |
2℃/35.6℉ |
40℃/104℉ |
4K |
30K ~ |
|

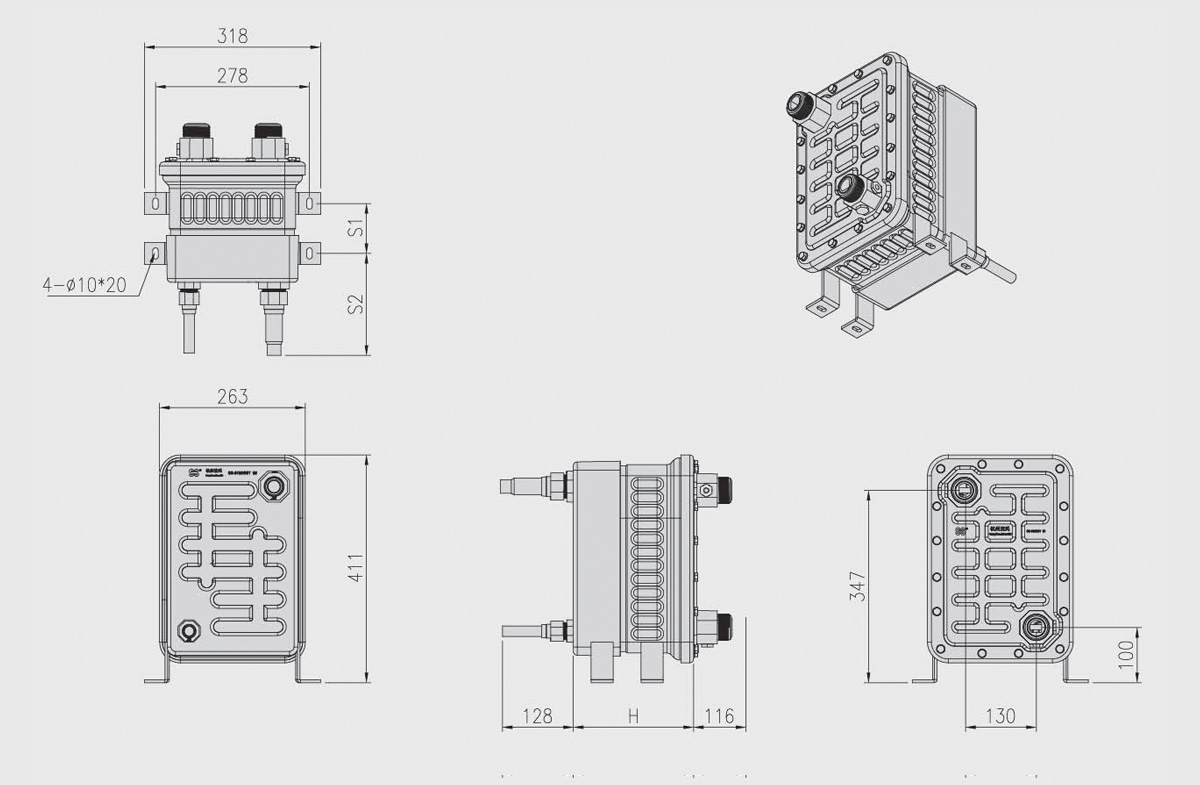

STEEL-PLASTIC SHELL PIPE HEAT EXCHANGER DIMENSION PARAMETERS TABLE
Model |
Connector size (inch) |
H(mm) |
S1(mm) |
S2(mm) |
Retrigerant side volume(L) |
Water side volume(L) |
|
One freon-one water |
SS-0120GST-F |
G1"/R1" or 1-1/2" clamp ferrule |
152 |
Dimensions S1 and S2 can be adjusted according to customer requirements |
1.13 |
4.70 |
|
SS-0150GST-F |
G1"/R1" or 1-1/2" clamp ferrule |
152 |
1.30 |
4.51 |
|||
SS-0180GST-F |
G1"/R1" or 1-1/2" clamp ferrule |
217 |
1.63 |
7.33 |
|||
SS-0220GST-F |
G1"/R1" or 1-1/2" clamp ferrule |
217 |
1.95 |
6.95 |
|||
SS-0250GST-F |
G1"/R1" or 1-1/2" clamp ferrule |
217 |
2.03 |
6.85 |
|||
SS-0360GST-F |
G1-1/4" / R1-1/4" or 1-1/2" clamp ferrule |
310 |
2.96 |
10.29 |
|||
Double freon-one water |
SS-0300GST-F2 |
G1-1/4" / R1-1/4" G2 or 1-1/2" clamp ferrule |
310 |
Dimensions S1 and S2 can be adjusted according to customer requirements |
1.44×2 |
10.39 |
|
SS-0360GST-F2 |
G1-1/4" / R1-1/4" G2 or 1-1/2" clamp ferrule |
310 |
1.60×2 |
10.00 |
|||
SS-0480GST-F2 |
G1-1/4" / R1-1/4" G2 or 1-1/2" clamp ferrule |
383 |
2.00×2 |
12.54 |
|||
SS-0650GST-F2 |
2" clamp ferrule |
593 |
2.96×2 |
10.29×2 |
|||
